Furnace Products

HIGH TEMPERATURE FURNACE WITH GAS

HIGH TEMPERATURE FURNACE WITH GAS (PROGRAMMABLE DUAL ZONE / SLIDING TUBE FURNACE) FACILITY

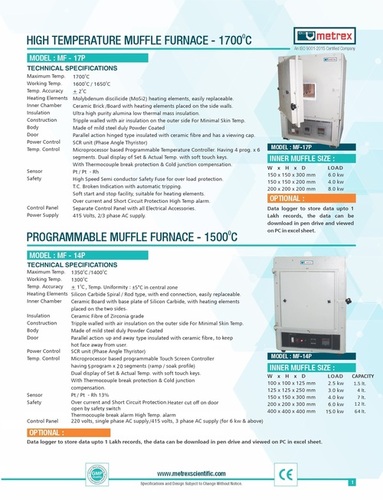

HIGH TEMPERATURE MUFFLE FURNACE-1500

The instrument maximum operating temperature of 1300 C. The working operating temperature must be at least 1200 C The instrument up and away door type to keep hot face away from user. The instrument temperature uniformity of 5C for 60% of internal dimensions and 10 C for overall internal dimensions. Vendor must provide uniformity graph data sheet at 500 C, 900 C and 1200 C

TUBULAR FURNACE

1700C Tube Furnace, Hot Zone Size (mm) : ID-30, L-400, Uniform Hot Zone Length-220, Control Zone: Single Construction in Steel with Anti-Corrosion Coating, Work Tube Replaceable, Work Tube Type: 99% Alumina Tube: OD- 40mm, ID-30mm, L-1000 mm, Insulation: Non Carcinogenic Fiber insulation, Heater: MoSi2/Kanthal Avg. Rate of Heating : 8C/min upto 1000C, 3-5C/min from 1000C to 1700C, Thermocouple: B Type, Control Panel: Programmable, Phase angle fired, Soft Start Soft Stop, Step Down exformer, Special Thyristor, Safety Features: TC Break, Over Current, Over Temp.

HIGH TEMPERATURE MUFFLE CUM TUBE FURNACE

Temperature Range - 1600 C Continuous Operating temp C - 1500 C Temperature Controller - Microprocessor based PID Programmable (Profile) Temperature Controller - 4x16 Segment Supply - Single Phase All heaters with temperature accuracy. Digital VAF meter to indicate the power, current and voltage consumed by the machine, Power control through Solid State Relays, Necessary HRC Fuse are provided Insulation Ceramic Zerconia Grade wool blanket Double walled with air insulation on the outer side for minimal skin temperature made of mild steel duly powder coated. Door - Insulated solid door with clamp easily, movable and locking system door open Shutdown heater

Temperature and Environment Controlled Vacuum Sintering Furnace

Maximum Temp. 1700 degree C Working Temp. 1650 degree C Heating Elements Molybdenum Disilicide (4 no.) Construction Triple walled with air insulation on the outer side For Minimal Skin Temp. Gas Purging Ends of the tube have Stainless Steel 304 flanges/ couplers with cooling attachment for purging of gases and vacuum. Vacuum to be achieved in tube 10-2 mbar at room temp. With gas flow meters for Argon and Nitrogen gas. Flow rate upto 500 SCCM Temp. Control Microprocessor based PID Digital Programmable Control with Thermocouple break protection and Cold junction compensation. Safety Over current and Short Circuit Protection Thermocouple break alarm, High Temp. alarm Power Supply 415 volts, three phase AC supply.

HIGH TEMPERATURE TUBE FURNACE

High Temperature Tubular Furnace for heating various types of samples in air. An inert atmosphere, under vacuum, a controller and uniform temperature or ramping up through a temperature profile.

Three Zone Split Tube Furnace (Cvd)

THERMAL CVD / HORIZONTAL THREE ZONE SPLIT TUBE FURNACE

Programmable Furnace

PROGRAMMABLE BOX FURNACE

Three Zone Tube Furnace

High Temperature Tube Furnace

Programmable Tube Furnace

Rocking Tube Furnace

Vacuum Furnace

Tilting Furnace

Rectangular Furnace

Two Zone Split Type Furnace

Split Type Furnace - Horizontal

Split Type Furnace - Vertical

Salt Bath Furnace

Cylindrical Furnace

High Temperature Muffle Furnace - 1700 C

Programmable Muffle Furnace - 1500 C

High Temperature Muffle Furnace - 1400 C (Advance)

Programmable Muffle Furnace

Muffle Furnace

Bottom Loading Furnace
